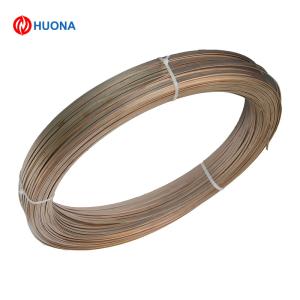

6J13 Enameled Bare Strip Copper Manganese Alloy CuMn Resistance Ribbon

Name: 6J13 Enameled Bare Strip Copper Manganese Alloy CuMn Resistance Ribbon
Brand: HUONA
Price: 1 USD

Brand Name : HUONA

Model Number : 6J13

Certification : ISO9001

Place of Origin : CHINA

MOQ : 10KG

Price : Negotiate

Payment Terms : T/T

Supply Ability : 100 Tons/Month

Delivery Time : Around a week

Packaging Details : Spool, Carton, Wooden Case

Product name : Copper-Manganese Alloy

Product grade : 6j13

Product composition : Copper-Manganese

Product type : Strip/Ribbon

Quality : High quality

Thickness : 0.1-3mm

MOQ : 10KG

Origin : China

Contact Now

Basic Info.

Attribute	Details	Attribute	Details
Model NO.	6J13	Shape	Stirp
Surface	Bright	Width	Customized
Thickness	0.1-3.0 mm	MOQ	10KG
Density	8.4 g/cm³	Resistivity	0.44
Type	Strip/Ribbon	Application	Water Heater, Air Condition Refrigerator
Alloy	CuMn alloy	Standard	GB/T
Transport Package	Wooden Case	Specification	Customized
Trademark	Huona	Origin	China
HS Code	7506220000	Production Capacity	1500 tons/Year

Product Description

6J13 Enameled Bare Strip Copper Manganese Alloy CuMn Resistance Ribbon

Product Description

Copper Manganin widely used for Shunt resistor with the highest requirements, Copper Manganin has been used in
precision built electrical components such as Wheatstone bridges, decade boxes, voltage drivers, potentiometers
and resistance standards.

Chemical Content, %

Ni	Mn	Fe	Si	Cu	Other	ROHS Directive
						Cd	Pb	Hg	Cr
2~5	11~13	<0.5	micro	Bal	-	ND	ND	ND	ND

Mechanical Properties

Max Continuous Service Temp	0-100ºC
Resisivity at 20ºC	0.44±0.04ohm mm2/m
Density	8.4 g/cm3
Thermal Conductivity	40 KJ/m·h·ºC
Temp Coefficient of Resistance at 20 ºC	0~40α×10-6/ºC
Melting Point	1450ºC
Tensile Strength(Hard)	585 Mpa(min)
Tensile Strength,N/mm2 Annealed,Soft	390-535
Elongation	6~15%
EMF vs Cu, μV/ºC (0~100ºC)	2(max)
Micrographic Structure	austenite
Magnetic Property	non
Hardness	200-260HB
Micrographic Structure	Ferrite
Magnetic Property	Magnetic
