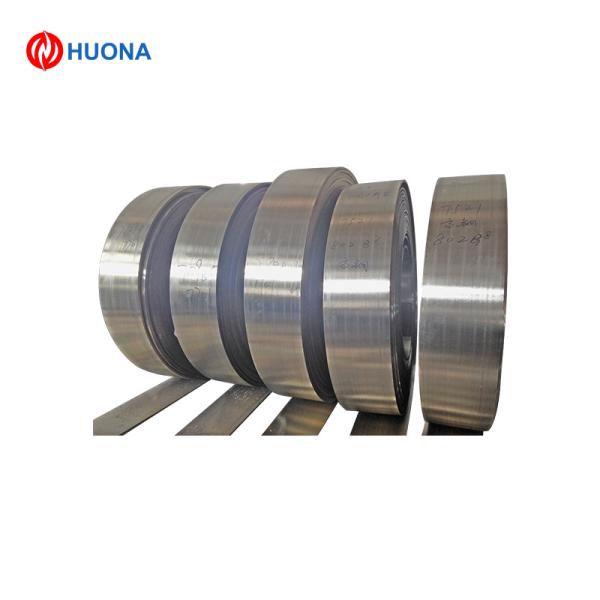

Silver Coated Copper Tape for Electrical Shielding & Connections

Name: Silver Coated Copper Tape for Electrical Shielding amp Connections
Brand: Huona
Price: 1 USD

Brand Name : Huona

Model Number : Silver Plated Copper Strip

Certification : ISO9001,SGS

Place of Origin : CHINA

MOQ : 20-50KG

Price : Negotiable

Payment Terms : L/C,T/T,Western Union,MoneyGram

Supply Ability : 500tons per month

Delivery Time : 5-21days

Packaging Details : Carton/Woodbox

Silver Plating Thickness : 0.5μm–8μm (customizable)

Product Name : Silver Plated Copper Strip

Strip Thickness : 0.05mm, 0.1mm, 0.2mm, 0.3mm, 0.5mm, 0.8mm (customizable)

Strip Width : 3mm, 5mm, 10mm, 15mm, 20mm, 30mm (customizable up to 100mm)

Tensile Strength : 260–360 MPa

Operating Temperature : - 70°C to 160°C

Contact Now

Product Description​

Silver - Plated Copper Strip​

Product Overview​

Silver - plated copper strip integrates the high conductivity of pure copper with the enhanced electrical performance and corrosion resistance of silver plating. The copper base provides a stable low - resistance foundation, while the uniform silver plating layer improves surface conductivity and oxidation resistance. It is widely used in electromagnetic shielding, high - frequency transformers, lithium - ion battery tabs, and precision electrical components.​

Standard Designations​

Material Standards:​

Copper base: Complies with ASTM B152 (copper sheet and strip standards).​

Silver plating: Follows ASTM B700 (electrodeposited silver coatings).​

Electrical materials: Meets IEC 61238 and MIL - STD - 883 standards.​

Key Features​

Superior surface conductivity: Silver plating ensures low signal loss in high - frequency applications.​

Excellent electromagnetic shielding: Blocks interference in sensitive electronic systems.​

Strong corrosion resistance: Resists oxidation and humidity in harsh environments.​

High dimensional precision: Uniform thickness and flatness for consistent performance.​

Good formability: Can be cut, bent, and stamped into custom shapes.​

Technical Specifications​

​

Attribute​

Value​

Base Copper Purity​

≥99.95%​

Silver Plating Thickness​

0.5μm–8μm (customizable)​

Strip Thickness​

0.05mm, 0.1mm, 0.2mm, 0.3mm, 0.5mm, 0.8mm (customizable)​

Strip Width​

3mm, 5mm, 10mm, 15mm, 20mm, 30mm (customizable up to 100mm)​

Tensile Strength​

260–360 MPa​

Elongation​

≥25%​

Electrical Conductivity​

≥99% IACS​

Operating Temperature​

- 70°C to 160°C​

​

Chemical Composition (Typical, %)​

​

Component​

Content (%)​

Copper (Base)​

≥99.95​

Silver (Plating)​

≥99.9​

Trace Impurities​

≤0.05 (total)​

​

Product Specifications​

​

Item​

Specification​

Length per Roll​

50m, 100m, 300m, 500m (customizable)​

Packaging​

Vacuum - sealed in anti - static bags; packed in cardboard boxes with moisture - proof layers​

Surface Finish​

Mirror - bright silver plating with Ra ≤0.8μm​

Flatness Tolerance​

≤0.01mm/m (ensures uniform contact)​

OEM Support​

Custom width, thickness, plating thickness, and laser cutting available​

​

We also provide other plated copper strips such as gold - plated copper strip and nickel - plated copper strip. Free samples and detailed technical datasheets are available upon request. Custom specifications can be tailored to meet shielding, conduction, or battery application requirements.
